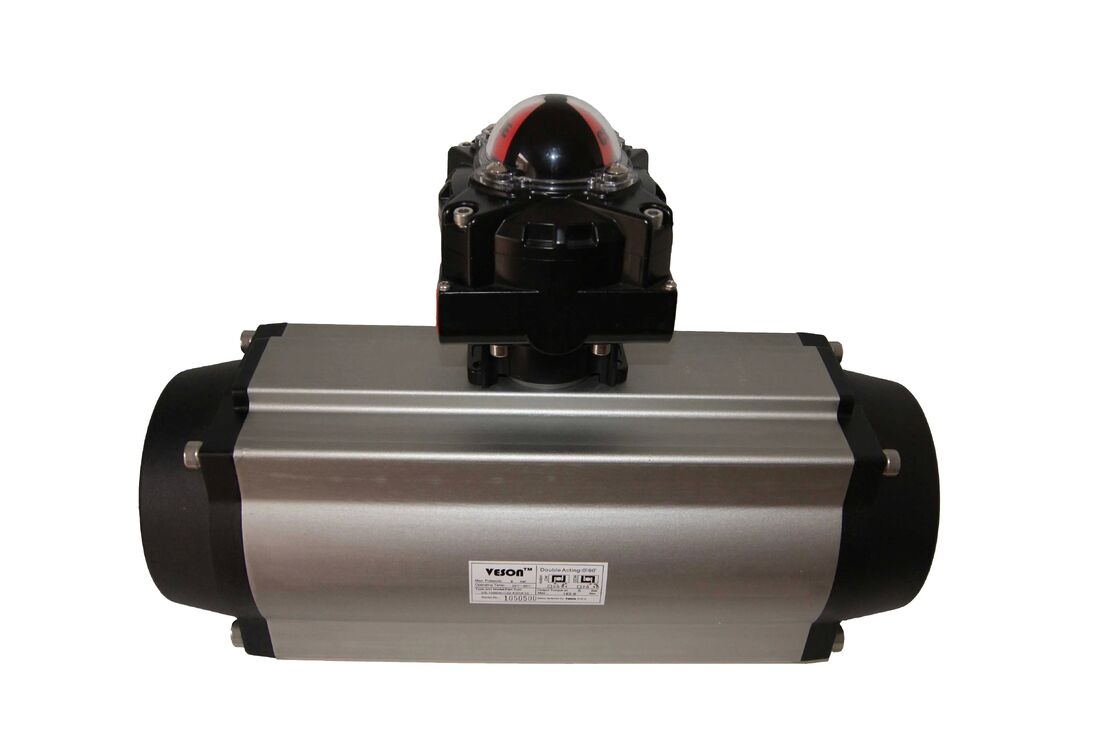

Aluminum Alloy Pneumatic Rack and Pinion Actuator with Hard Anodized Treatment and Epoxy Coated for Corrosion Resistance
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Modello n.: | VS-210 | Energia: | Pneumatico |
|---|---|---|---|
| Standard: | Standard | Direzione della pressione: | cilindro a doppia azione |
| Tipo ad effetto doppio del cilindro: | Doppio Rod Cylinder | Tipo speciale del cilindro: | Numero di cilindri |
| Tipo di cilindro combinato: | Cilindro pressurizzato | Norma di progettazione: | ISO5211DIN3337 |
| Pacchetto di trasporto: | Pacchetto di case in legno | Specifica: | 1 pollice-12 pollice |
| Marchio: | Vesone o cusomer "s | Origine: | Cina |
| Codice Hs: | 84123900 | Capacità produttiva: | 50000pc / y |
| Evidenziare: | aluminum alloy pneumatic actuator,hard anodized rack and pinion actuator,corrosion resistant epoxy coated actuator |
||
Descrizione di prodotto
VS-210 (rack& pinion) have the following features.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
