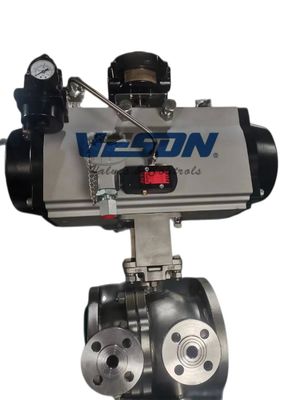

Pneumatic Jacketed Ball Valve with Pressure Rating 150#-600# Size 1/2"-24" DN15-DN600 for Steam Sulphur Applications
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Tipo di canale: | Dritto attraverso il tipo | Struttura: | Valvola a sfera mobile |
|---|---|---|---|
| Tipo di valvola: | Valvola a sfera mobile | Valutazione di classe: | 150# --- 600# PN16-PN110 |
| Gamma di dimensioni: | 1/2 "-24" DN15-DN600 | Materiale del corpo: | Acciaio al carbonio, acciaio inossidabile, acciaio inossidabile duplex, bronzo, Inconel |
| Connessione finale: | FLANG END (RF, RTJ) | Tipo di operazione: | Manuale, ingranaggio, pneumatico, elettrico |
| Valutazione della pressione: | Classe 150 - Classe 2500 o PN 16 - PN 420 | Opzioni materiali: | WCB, LCB, CF3, CF8M, CF3M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C9 |
| Conservazione del calore: | SÌ | isolamento freddo: | SÌ |
| Diametro del flusso: | Full-diametro | Prestazioni di perdita: | Nessuna perdita |
| Tipo di costruzione: | Monolitico | ||
| Evidenziare: | Pressure Rating 150#-600# Pneumatic Ball Valve,Size 1/2"-24" Jacketed Ball Valve,DN15-DN600 Steam Sulphur Ball Valve |
||
Descrizione di prodotto
| PRODUCT NAME | Pneumatic Jacket ball valve |
|---|---|
| BRAND | Veson |
| ORIGIN | China |
| Packing | Plywood case |
| Class / Rating | 150#---600# PN16-PN110 |
| Size | 1/2"-24"DN15-DN600 |
| Materials | Body Material: Carbon steel, Stainless steel, Duplex stainless steel, Bronze, Inconel etc |
| Ends | Flange End (RF, RTJ) |
| Operation | Manual, Gear, Pneumatic, Electric, etc |
Jacket ball valve features excellent heat-preservation and cold-insulation properties. The full-diameter design matches pipe diameter to minimize heat loss from pipeline media. Primarily used for transporting viscous media that solidifies at normal temperatures in petroleum, chemical, metallurgical, pharmaceutical, and food industries.
The monolithic construction design provides superior sealing performance with more compact dimensions and lighter weight than traditional ball valves. The carbon steel welded jacket offers enhanced pressure resistance and durability compared to cast alternatives.
- Superior heat preservation and cold preservation capabilities
- Full-diameter design reduces media flow resistance
- Monolithic construction prevents leakage
- Compact and lightweight design
- Enhanced pressure resistance
Sizes: 1/2" - 24", DN 15 - DN 600
Pressure Rating: Class150 - Class 2500 or PN 16 - PN 420
Material of valve body: WCB, LCB, CF3, CF8M, CF3M, CF8M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C95500, Alloy 20 etc
