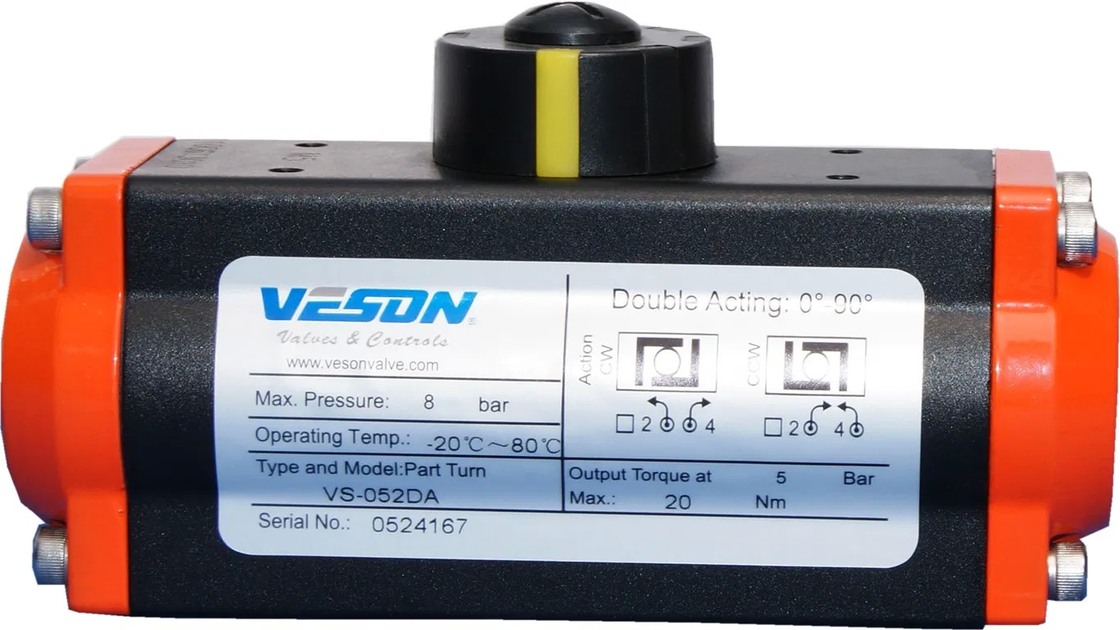

Pneumatic Air Actuator with ISO5211 & DIN3337 Standard CE & SGS Certified Hard Anodized Aluminum Valve Actuator
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Modello n.: | VS-052 ~ VS-400 | Energia: | Pneumatico |
|---|---|---|---|
| Direzione della pressione: | cilindro a doppia azione | Materiale del pignone: | Acciaio legato indurito |
| Rivestimento del pignone: | Nichelato (oltre 15um) | Materiale del corpo dell'attuatore: | Estrusione in alluminio |
| Rivestimento del corpo dell'attuatore: | Anodizzato duro (oltre 30um) | Materiale del cappuccio protettivo: | Die Casting Aluminium |
| Rivestimento del cappuccio terminale: | Rivestimento epossidico (oltre 80um) | Materiale a pistone: | Die Casting Aluminium |
| Rivestimento del pistone: | Anodizzato duro (oltre 30um) | Regolazione del viaggio: | ±5º in posizioni aperta/chiusa |
| Materiale primaverile: | Acciaio ad alta resistenza | Rivestimento primaverile: | Epossidico ricoperto |
| Materiale cuscinetto: | Composto altamente durevole | ||
| Evidenziare: | ISO5211 & DIN3337 Standard Pneumatic Air Actuator,CE & SGS Certified Valve Actuator,Hard Anodized Aluminum Air Torque Actuator |
||
Descrizione di prodotto
Air Torque Type Valve Actuator
Position Indicator
All VESON pneumatic actuators feature a position indicator with Namur mounting for accessory attachment.
Pinion
Precision-ground hardened alloy steel pinion with Nickel plating (over 15μm) ensures minimal friction and maximum wear resistance.
Standards: Fully compliant with ISO5211 & DIN3337
Options: Available in stainless steel and aluminum alloy with customizable dimensions
Actuator Body
Hard-anodized aluminum extrusion (over 30μm) provides superior wear and corrosion protection while minimizing piston friction.
Options: Epoxy Coated and PTFE Coated variants available
End Cap
Epoxy coated die-cast aluminum end caps (over 80μm) offer maximum resistance against corrosive elements.
Options: PTFE Coated treatment available
Piston
Precisely balanced, hard-anodized die-cast aluminum piston (over 30μm) with high-quality guides and twin rack-and-pinion design ensures constant torque output.
Travel Adjustment
Standard ±5° adjustment in both open and closed positions via easily accessible external adjustment bolts.
High Performance Springs
Epoxy-coated high tensile steel springs provide corrosion resistance and extended service life.
Pre-loaded springs allow for safe and rapid disassembly.
Bearings & Guides
Highly durable compound material ensures high thrust stability with minimal friction for long operational life.
