EL-O-Matic Pneumatic Actuator with Hard Anodized Aluminum Body and Epoxy Coated End Caps for Precise Travel Adjustment ±5º
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Modello n.: | VS-052 ~ VS-400 | Materiale del pignone: | Acciaio legato indurito |
|---|---|---|---|
| Placcatura del pignone: | Nichelato (oltre 15um) | Materiale del corpo dell'attuatore: | Estrusione in alluminio |
| Trattamento Corpo Attuatore: | Anodizzato duro (oltre 30um) | Materiale del cappuccio protettivo: | Die Casting Aluminium |
| Trattamento del cappuccio terminale: | Rivestimento epossidico (oltre 80um) | Materiale a pistone: | Die Casting Aluminium |
| Trattamento pistone: | Anodizzato duro (oltre 30um) | Regolazione del viaggio: | ±5º in entrambe le posizioni |
| Materiale primaverile: | Acciaio ad alta resistenza | Rivestimento primaverile: | Epossidico ricoperto |
| Materiale cuscinetto: | Composto altamente durevole | Standard di montaggio: | ISO5211 e DIN3337 |
| Capacità produttiva: | 50000pc / y | ||
| Evidenziare: | Hard Anodized Aluminum Pneumatic Actuator,Epoxy Coated Valve Actuator,Travel Adjustment ±5º EL-O-Matic Actuator |
||
Descrizione di prodotto

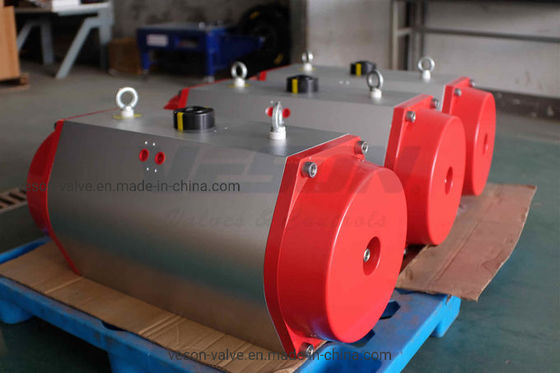

EL-O-Matic Type Valve Actuator Valve Automation
Key Features and Components
- Indicator Position indicator with Namur mounting for accessory attachment, standard on all VESON pneumatic actuators.
- Pinion Hardened alloy steel pinion precision ground and Nickel plated (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection with minimized piston friction. Optional Epoxy Coated and PTFE Coated treatments available.
- End Cap Epoxy coated (over 80μm) die casting aluminum end caps for maximum corrosion resistance. PTFE Coated treatment available as an option.
- Piston Precisely balanced, hard anodized (over 30μm) die casting aluminum piston with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment Standard ±5° adjustment in both open and closed positions via easily accessible external adjustment bolts.
- High Performance Springs Epoxy coated high tensile steel springs for corrosion resistance and extended service life. Pre-loaded design allows safe, rapid disassembly.
- Bearings & Guides Highly durable compound material provides high thrust stability with minimal friction for long operational life.
Product Images
