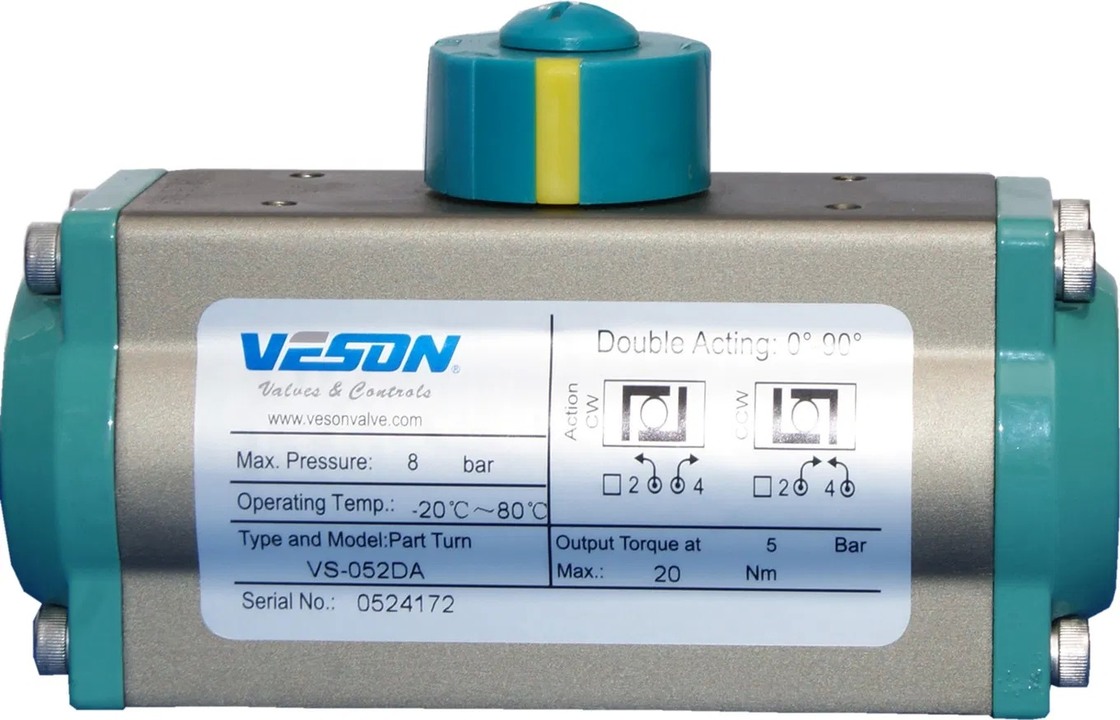

ISO5211 DIN3337 Standard Hard Anodized Aluminum Pneumatic Air Actuator with Double-acting Cylinder
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Modello n.: | VS-052 ~ VS-400 | Energia: | Pneumatico |
|---|---|---|---|
| Direzione della pressione: | cilindro a doppia azione | Materiale del pignone: | Acciaio legato indurito |
| Placcatura del pignone: | Nichelato (oltre 15um) | Materiale del corpo dell'attuatore: | Estrusione in alluminio |
| Trattamento Corpo Attuatore: | Anodizzato duro (oltre 30um) | Materiale del cappuccio protettivo: | Die Casting Aluminium |
| Trattamento del cappuccio terminale: | Rivestimento epossidico (oltre 80um) | Materiale a pistone: | Die Casting Aluminium |
| Trattamento pistone: | Anodizzato duro (oltre 30um) | Regolazione del viaggio: | ±5º |
| Materiale primaverile: | Acciaio ad alta resistenza | Trattamento primaverile: | Epossidico ricoperto |
| Materiale cuscinetto: | Composto altamente durevole | ||
| Evidenziare: | ISO5211 Standard Pneumatic Actuator,DIN3337 Standard Air Actuator,Hard Anodized Pneumatic Air Actuator |
||
Descrizione di prodotto
Actreg Type Aluminum Pneumatic Actuator
Position Indicator
Features a position indicator with Namur mounting for easy accessory attachment, standard on all VESON pneumatic actuators.
Precision Pinion
- Hardened alloy steel construction with precision grinding
- Nickel plated (over 15μm) for reduced friction and maximum wear resistance
- Fully compliant with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Durable Actuator Body
Constructed from hard anodized (over 30μm) aluminum extrusion for superior wear and corrosion resistance while minimizing piston friction.
Optional coatings: Epoxy Coated and PTFE Coated versions available.
Robust End Caps
Epoxy coated (over 80μm) die-cast aluminum end caps provide exceptional resistance against corrosive elements.
Optional treatments include PTFE Coating.
Precision Piston
- Precisely balanced die-cast aluminum construction
- Hard anodized treatment (over 30μm) for durability
- Fitted with high-quality guides
- Twin rack and pinion design ensures constant torque output
Adjustable Travel
Standard adjustment of ±5° in both open and closed positions via easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel construction with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded design for safe and rapid disassembly
Premium Bearings & Guides
Highly durable compound material provides exceptional thrust stability with minimal friction for extended operational life.
