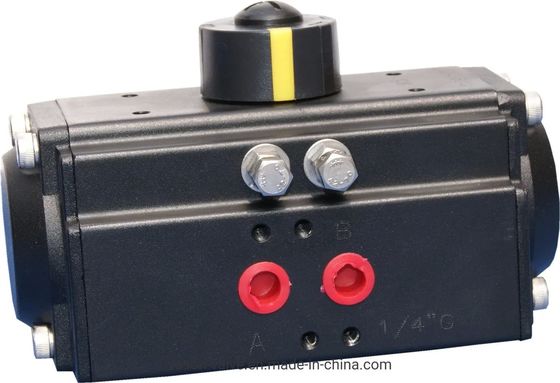

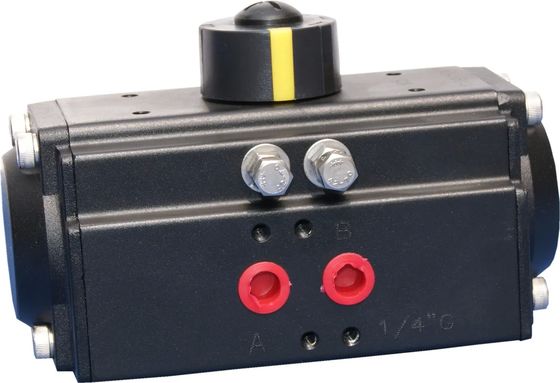

VS-052~VS-400 Model Hard Anodized CE & SGS Certified Aluminum Alloy Pneumatic Actuator with Double-acting Cylinder
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Modello n.: | VS-052 ~ VS-400 | Energia: | Pneumatico |
|---|---|---|---|
| Direzione della pressione: | cilindro a doppia azione | Materiale del pignone: | Acciaio legato indurito |
| Placcatura del pignone: | Nichelato (oltre 15um) | Materiale del corpo dell'attuatore: | Estrusione in alluminio |
| Trattamento Corpo Attuatore: | Anodizzato duro (oltre 30um) | Materiale del cappuccio protettivo: | Die Casting Aluminium |
| Trattamento del cappuccio terminale: | Rivestimento epossidico (oltre 80um) | Materiale a pistone: | Die Casting Aluminium |
| Trattamento pistone: | Anodizzato duro (oltre 30um) | Regolazione del viaggio: | ±5º |
| Materiale primaverile: | Acciaio ad alta resistenza | Trattamento primaverile: | Epossidico ricoperto |
| Materiale cuscinetti e guide: | Materiale composito altamente resistente | ||
| Evidenziare: | VS-052~VS-400 Model Pneumatic Actuator,Hard Anodized Pneumatic Actuator,CE & SGS Certified Pneumatic Actuator |
||
Descrizione di prodotto
Pneumatic Actuator Aluminum Alloy Manufacturer

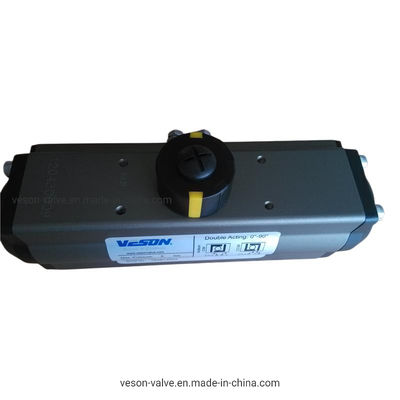

Position Indicator
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
Pinion
- Hardened alloy steel pinion precision ground and Nickel plated (over 15μm)
- Reduces friction and provides maximum wear resistance
- Full conformance with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Actuator Body
- Hard anodized aluminum extrusion (over 30μm)
- Protects against wear and corrosion while minimizing piston friction
- Optional treatments: Epoxy Coated and PTFE Coated
End Cap
- Epoxy coated die casting aluminum (over 80μm)
- Provides maximum resistance against potentially corrosive elements
- Optional treatments including PTFE Coated
Piston
- Precisely balanced hard anodized die casting aluminum (over 30μm)
- Fitted with high quality guides
- Twin rack and pinion design ensures constant torque output
Travel Adjustment
Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel springs with Epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded springs allow safe and rapid disassembly
Bearings & Guides
Highly durable compound material provides high thrust stability with minimum friction and long operational life.
