Precision Engineered Medium Pressure Low Temperature Pneumatic Rack and Pinion Actuator for Valve Actuation
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Modello n.: | VS-052 ~ VS-400 | Forma adeguata: | Tipo di commutazione |
|---|---|---|---|
| Tipo di lavoro: | Rotante | Pressione: | Pressione media |
| Temperatura di lavoro: | Temperatura bassa | Tipo di recitazione: | Doppio recitazione |
| Materiale: | Alluminio | Struttura: | Rack e pignone |
| Fonte di energia: | Pneumatico | Tipo di prodotto: | Attuatore neutro a pignone e cremagliera |
| Attuazione: | Quarto turno | Tipo di controllo: | on/off, Posizionamento, Modulante, ESD |
| Tipo di valvola: | Sfera, Farfalla, Spina e qualsiasi altro quarto di giro | Temperatura operativa: | -20 ° C a +80 ° C (-4 ° F a +176 ° F) |
| Coppia: | Da 12 Nm a 6000 Nm | Pressione operativa: | 8,3 bar/120 PSI |
| Evidenziare: | Precision Engineered Pneumatic Actuator,Medium Pressure Rack and Pinion Actuator,Low Temperature Valve Actuation System |
||
Descrizione di prodotto
Precision Engineered Rack and Pinion Valve Actuation Systems
Crafted for excellence, the Veson VS series actuator delivers unparalleled performance across diverse quarter-turn valve applications. Featuring a robust powder coating and innovative high corrosion-resistant aluminum pinion design with stainless steel fasteners, this actuator offers unmatched durability for long-term reliability.
Key Features
- Hard anodized high-grade aluminum pinion for superior corrosion resistance
- Modular construction for easy alterations between spring/action settings
- Dual valve flange drilling patterns and interchangeable drive inserts
- NAMUR interface standard for seamless accessory integration
- Dual stroke adjustment to prevent premature valve failures
- Standardized components for quick delivery in common configurations
Technical Specifications
| Power Source | Pneumatic |
|---|---|
| Product Type | Pneumatic Rack and Pinion Actuator |
| Actuation | Quarter-turn |
| Control Type | On/Off, Positioning, Modulating, Emergency Shutdown (ESD) |
| Valve Type | Ball, Butterfly, Plug, and other quarter-turn applications |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F), with optional adjustments |
| Torque Range | 12 Nm to 6000 Nm (18 sizes available) |
| Operating Pressure | Up to 8.3 bar / 120 psi |
Available in both single and double acting configurations across 18 sizes, with torque capabilities from 12 Nm to 6000 Nm. Designed for simple installation and years of reliable performance with a "fit and forget" approach.

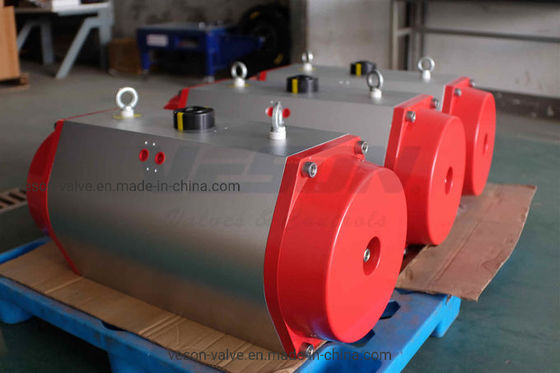

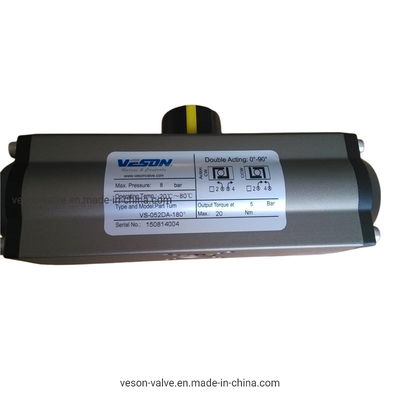

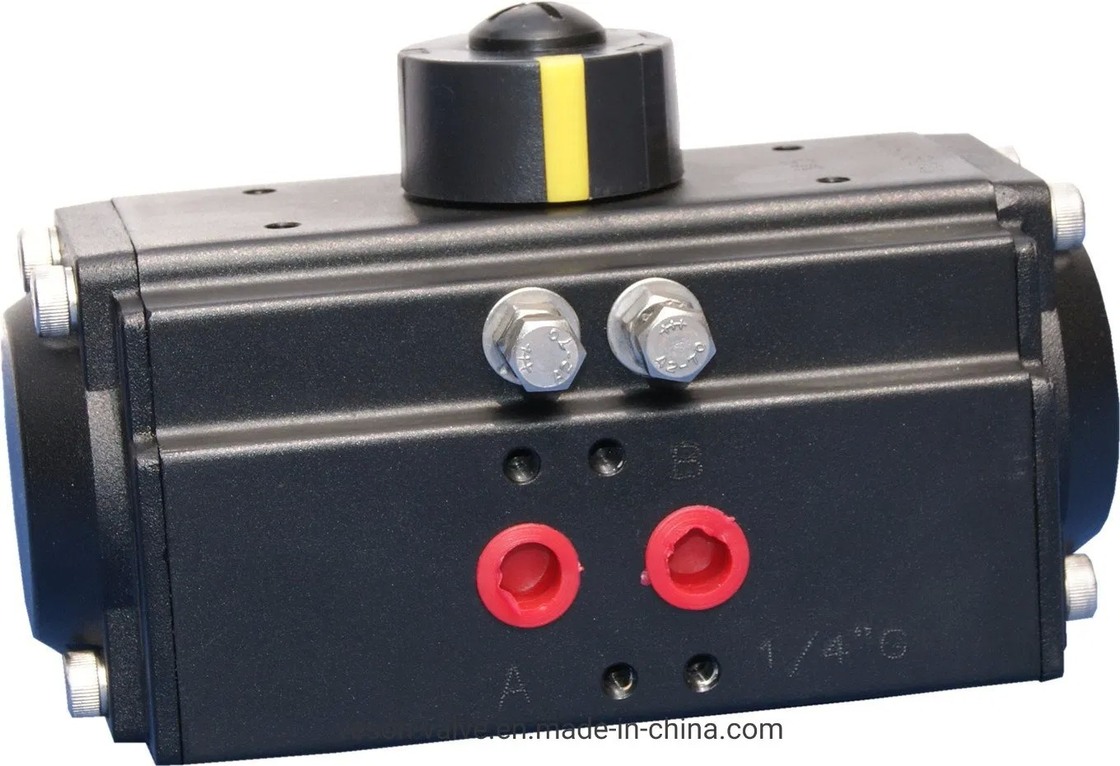

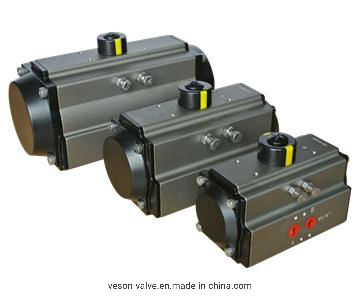

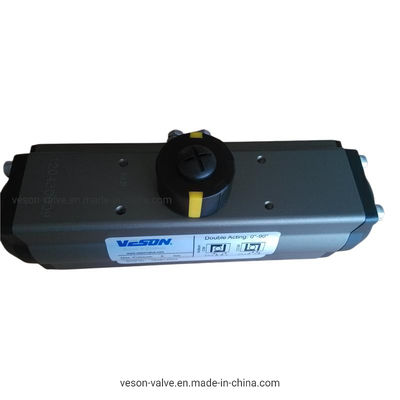

Product Images
