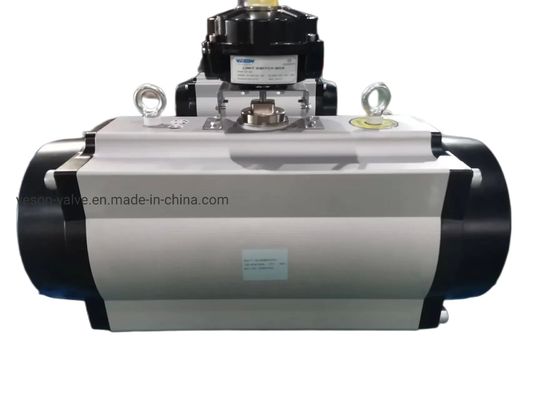

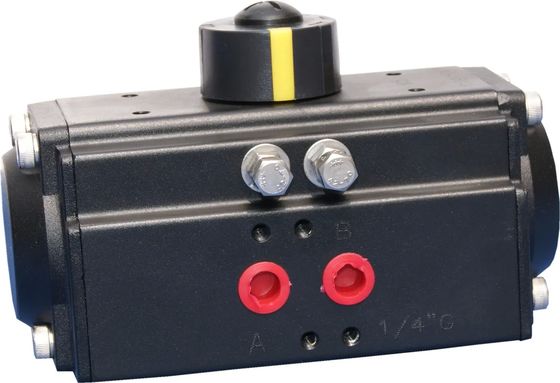

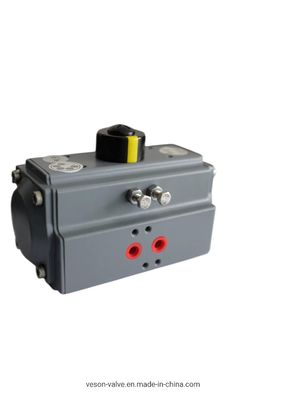

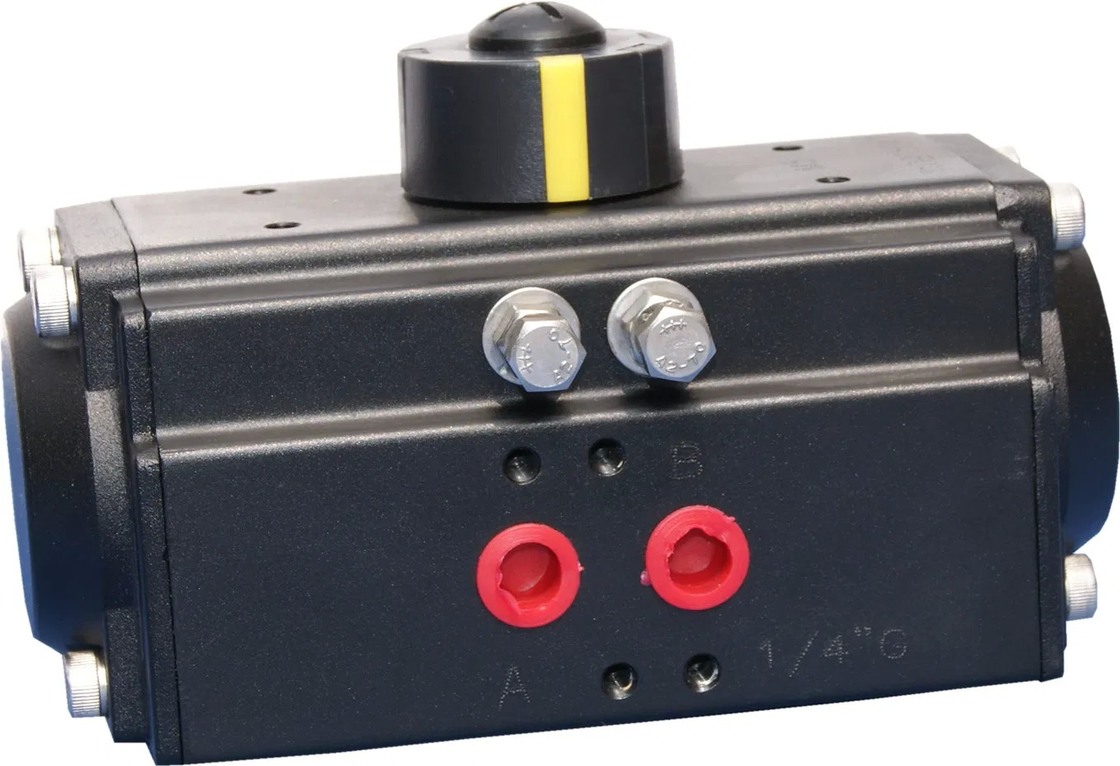

Hard Anodized Aluminum Pneumatic Cylinder with Epoxy Coated End Caps and Travel Adjustment ±5º
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Modello n.: | VS-052 ~ VS-400 | Energia: | Pneumatico |
|---|---|---|---|
| Direzione della pressione: | cilindro a doppia azione | Materiale del pignone: | Acciaio legato indurito |
| Placcatura del pignone: | Nichelato (oltre 15um) | Materiale del corpo dell'attuatore: | Estrusione in alluminio |
| Trattamento Corpo Attuatore: | Anodizzato duro (oltre 30um) | Materiale del cappuccio protettivo: | Die Casting Aluminium |
| Trattamento del cappuccio terminale: | Rivestimento epossidico (oltre 80um) | Materiale a pistone: | Die Casting Aluminium |
| Trattamento pistone: | Anodizzato duro (oltre 30um) | Regolazione del viaggio: | ±5º in entrambe le posizioni |
| Materiale primaverile: | Acciaio ad alta resistenza | Rivestimento primaverile: | Epossidico ricoperto |
| Materiale cuscinetto: | Composto altamente durevole | ||
| Evidenziare: | Hard Anodized Aluminum Pneumatic Cylinder,Epoxy Coated Pneumatic Cylinder,Travel Adjustment ±5º Pneumatic Cylinder |
||
Descrizione di prodotto
China Manufacturer Pneumatic Cylinder
Product Features

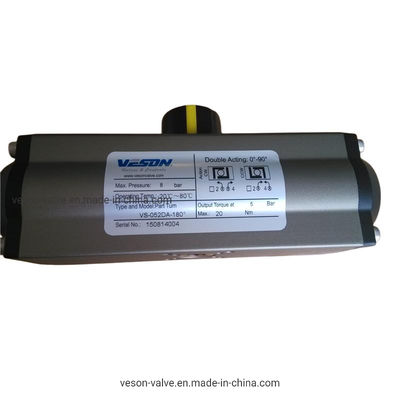

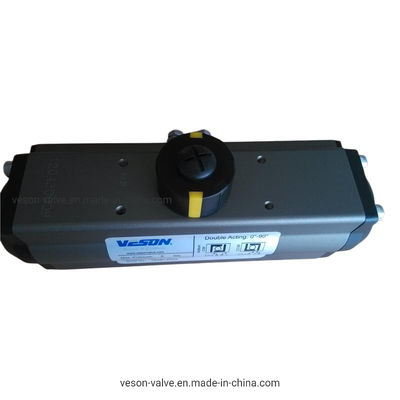

- Indicator: A position indicator with Namur mounting is included on all VESON pneumatic actuators for mounting accessories.
- Pinion: Features a hardened alloy steel pinion that is precision ground and Nickel plated (over 15μm) to reduce friction and provide maximum wear resistance. Fully conforms with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body: Constructed with hard anodized (over 30μm) aluminum extrusion for wear and corrosion protection while minimizing piston friction. Epoxy Coated and PTFE Coated options available.
- End Cap: Made from epoxy coated (over 80μm) die casting aluminum for maximum resistance against corrosive elements. PTFE Coated treatment available as an option.
- Piston: Precisely balanced with hard anodized treatment (over 30μm) die casting aluminum piston fitted with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment: Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
- High Performance Springs: High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs can be safely and rapidly disassembled.
- Bearings & Guides: Highly durable compound material provides high thrust stability with minimum friction and long operational life.
