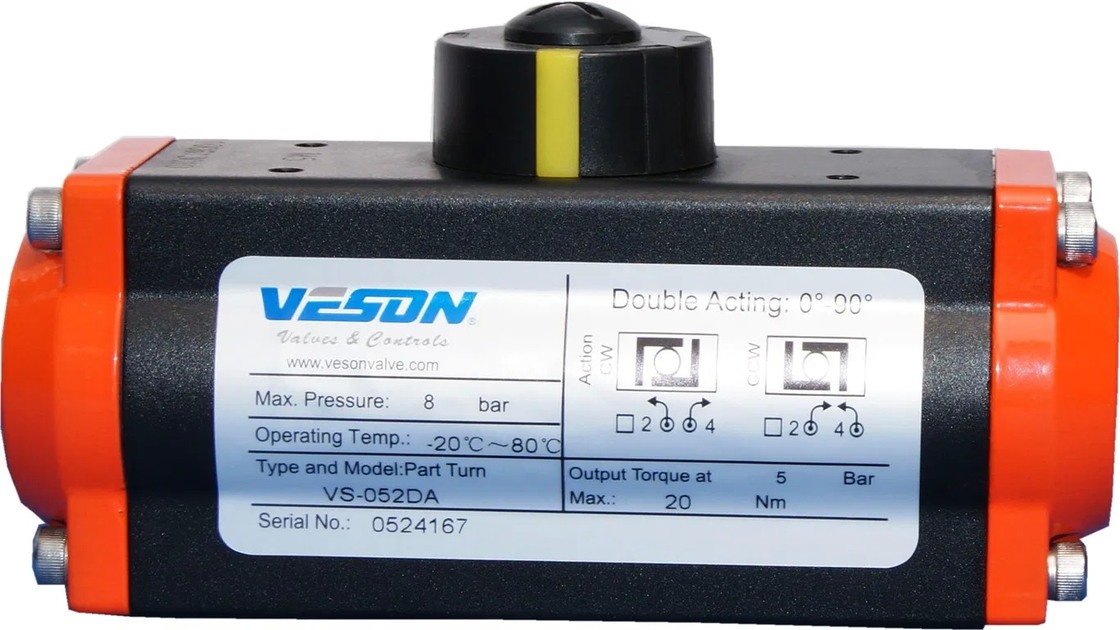

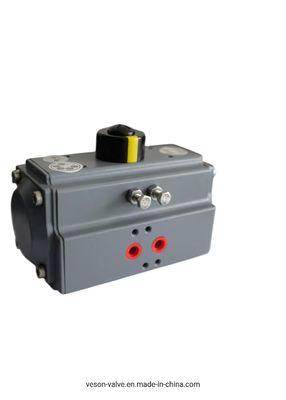

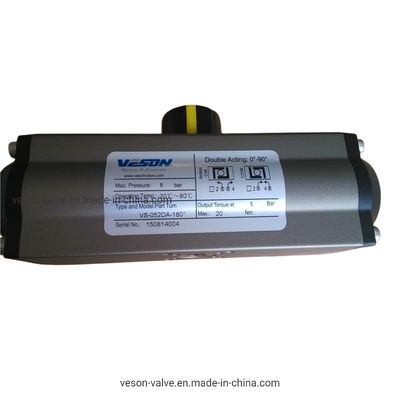

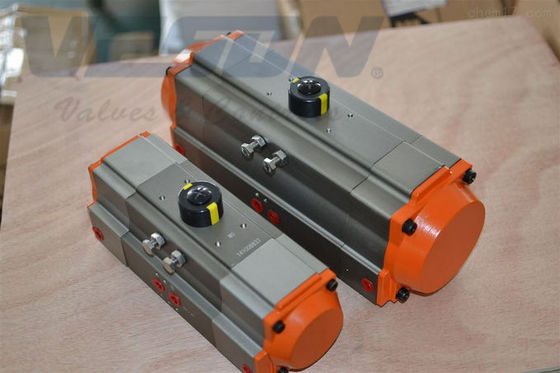

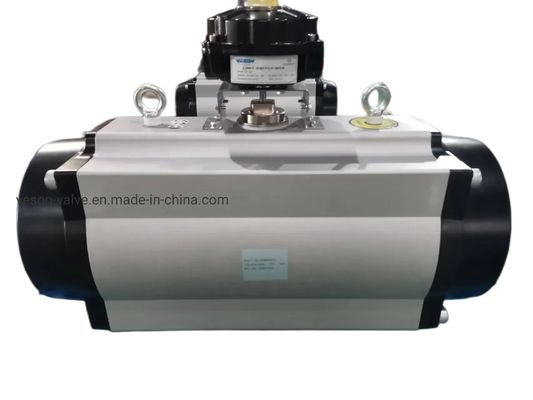

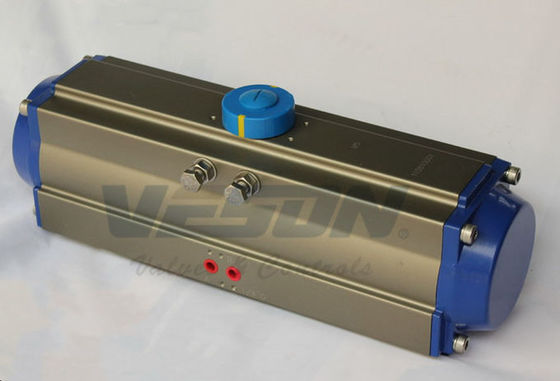

ISO5211 & DIN3337 Standard CE & SGS Certified VS-052~VS-400 Model Pneumatic Actuator Valve Actuator
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Modello n.: | VS-052 ~ VS-400 | Forma adeguata: | On-off |
|---|---|---|---|
| Tipo di lavoro: | Rotante | Pressione: | Pressione media |
| Temperatura di lavoro: | Temperatura normale | Tipo di recitazione: | Doppio recitazione |
| Materiale: | Alluminio | Struttura: | Rack e pignone |
| Materiale del pignone: | Acciaio legato indurito | Rivestimento del pignone: | Nichelato (oltre 15um) |
| Rivestimento del corpo dell'attuatore: | Anodizzato duro (oltre 30um) | Rivestimento del cappuccio terminale: | Rivestimento epossidico (oltre 80um) |
| Rivestimento del pistone: | Anodizzato duro (oltre 30um) | Regolazione del viaggio: | ±5º |
| Rivestimento primaverile: | Epossidico ricoperto | ||
| Evidenziare: | ISO5211 & DIN3337 Standard Pneumatic Actuator,CE & SGS Certified Valve Actuator,VS-052~VS-400 Model Pneumatic Actuator |
||
Descrizione di prodotto
Valve Pneumatic Actuator Pneumatic Drive Actuated Solution
High-performance pneumatic actuator solution designed for industrial valve applications, featuring durable construction and precision engineering.
Key Features
- Position Indicator: Equipped with Namur mounting for accessory installation.
- Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Compliant with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel or aluminum alloy options.
- Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available.
- Corrosion-Resistant End Caps: Epoxy-coated die-cast aluminum (over 80μm) with optional PTFE coating.
- Precision Piston: Hard-anodized die-cast aluminum (over 30μm) with high-quality guides and twin rack-and-pinion design for consistent torque output.
- Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts.
- High-Performance Springs: Epoxy-coated high-tensile steel for corrosion resistance and extended service life. Designed for safe, rapid disassembly.
- Premium Bearings & Guides: Durable compound material for high thrust stability with minimal friction and long operational life.
