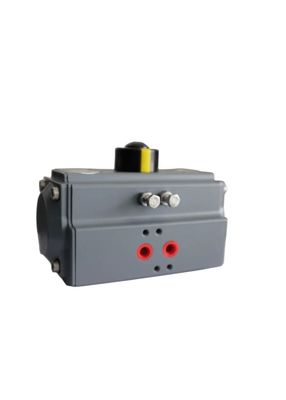

Epoxy Coated Pneumatic Actuator with ISO Pad 5211 and Travel Adjustment ±5º for Ball Valves with Limit Switch Boxes
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Modello n.: | VS-052 ~ VS-400 | Energia: | Pneumatico |
|---|---|---|---|
| Direzione della pressione: | cilindro a doppia azione | Guida: | Attuatore pneumatico |
| Materiale del pignone: | Acciaio legato indurito | Rivestimento del pignone: | Nichelato (oltre 15um) |
| Corpo attuatore: | Estrusione in alluminio | Rivestimento del corpo: | Anodizzato duro (oltre 30um) |
| Cappuccio protettivo: | Die Casting Aluminium | Rivestimento del cappuccio terminale: | Rivestimento epossidico (oltre 80um) |
| Materiale a pistone: | Die Casting Aluminium | Rivestimento del pistone: | Anodizzato duro (oltre 30um) |
| Regolazione del viaggio: | ±5º | Materiale delle molle: | Acciaio ad alta resistenza |
| Rivestimento molle: | Epossidico ricoperto | ||
| Evidenziare: | ISO Pad 5211 Pneumatic Actuator,Travel Adjustment ±5º Valve Actuator,Limit Switch Boxes Pneumatic Air Actuator |
||
Descrizione di prodotto
Epoxy Coated Pneumatic Actuator with ISO Pad 5211
Premium Features and Specifications
Position Indicator
- Namur mounting position indicator included on all VESON pneumatic actuators
Precision Pinion
- Hardened alloy steel construction with precision grinding
- Nickel plated (over 15μm) for reduced friction and maximum wear resistance
- Fully compliant with ISO5211 & DIN3337 standards
- Custom dimensions available with stainless steel and aluminum alloy options
Durable Actuator Body
- Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection
- Minimized piston friction
- Optional Epoxy Coated and PTFE Coated treatments available
Corrosion-Resistant End Caps
- Epoxy coated (over 80μm) die casting aluminum construction
- Maximum resistance against corrosive elements
- Optional PTFE Coated treatment available
Precision Piston System
- Hard anodized (over 30μm) die casting aluminum piston
- Precisely balanced with high-quality guides
- Twin rack and pinion design ensures constant torque output
Adjustable Travel
- Standard adjustment of ±5° in both open and closed positions
- Easy access via external adjustment bolts
High Performance Springs
- High tensile steel construction with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded design allows for safe and rapid disassembly
Durable Bearings & Guides
- Highly durable compound material construction
- Provides high thrust stability with minimal friction
- Extended operational lifespan
