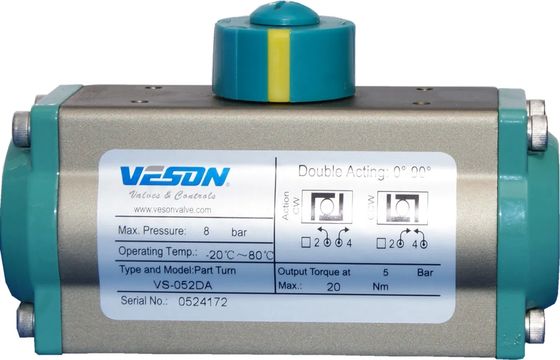

PTFE Coated Pneumatic Actuator Valve Operator with Precision Ground Pinion and Epoxy Coated End Cap for Travel Adjustment ±5º
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Modello n.: | VS-052 ~ VS-400 | Energia: | Pneumatico |
|---|---|---|---|
| Direzione della pressione: | cilindro a doppia azione | Materiale del pignone: | Acciaio legato indurito |
| Rivestimento del pignone: | Nichelato (oltre 15um) | Materiale del corpo dell'attuatore: | Estrusione in alluminio |
| Rivestimento del corpo dell'attuatore: | Anodizzato duro (oltre 30um) | Materiale del cappuccio protettivo: | Die Casting Aluminium |
| Rivestimento del cappuccio terminale: | Rivestimento epossidico (oltre 80um) | Materiale a pistone: | Die Casting Aluminium |
| Rivestimento del pistone: | Anodizzato duro (oltre 30um) | Regolazione del viaggio: | ±5º in posizioni aperta/chiusa |
| Materiale primaverile: | Acciaio ad alta resistenza | Rivestimento primaverile: | Epossidico ricoperto |
| Materiale cuscinetto: | Composto altamente durevole | ||
| Evidenziare: | PTFE Coated Pneumatic Actuator,Precision Ground Pinion Valve Operator,Epoxy Coated End Cap Air Actuator |
||
Descrizione di prodotto
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
Hardened alloy steel pinion precision ground and nickel plated (over 15μm) to reduce friction and provide maximum wear resistance. Fully conforms to ISO5211 & DIN3337 standards. Custom dimensions available with optional stainless steel and aluminum alloy materials.
Hard anodized aluminum extrusion (over 30μm) protects against wear and corrosion while minimizing piston friction. Optional epoxy coating and PTFE coating available.
Epoxy coated (over 80μm) die-cast aluminum end caps provide maximum resistance against potentially corrosive elements. PTFE coating available as an alternative treatment.
Precisely balanced, hard anodized (over 30μm) die-cast aluminum piston fitted with high-quality guides. Twin rack and pinion design ensures constant torque output across all actuators.
Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs can be safely and rapidly disassembled.
Highly durable compound material provides high thrust stability with minimal friction and long service life.
