Pneumatic Ball Valve with ASME B16.34 Standard, ISO5211 Mounting, and 1 Million Cycles for Industrial Usage
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Modello n.: | VS-240SR08-FO | Modulo di connessione: | Flangia |
|---|---|---|---|
| Modalità di guida: | Pneumatico | Pressione nominale: | JIS10-20K |
| Canale: | Dritto attraverso il tipo | Struttura: | Valvola a sfera mobile |
| Tipo: | Valvola a sfera mobile | Funzione: | Valvola di demolizione |
| Temperatura: | Temperatura normale | Termina la dimensione della flangia: | ASME B16.5 |
| Specifiche: | 1 pollice-12 pollice | Materiale del corpo: | 316 acciaio inossidabile |
| Materiale a sfera: | 316 acciaio inossidabile | Materiale dello stelo: | 316 acciaio inossidabile |
| Pressione dell'aria: | 80-120 psi | ||
| Evidenziare: | ASME B16.34 Pneumatic Ball Valve,ISO5211 Mounting Flanged Ball Valve,1 Million Cycles Air Actuated Ball Valve |
||
Descrizione di prodotto

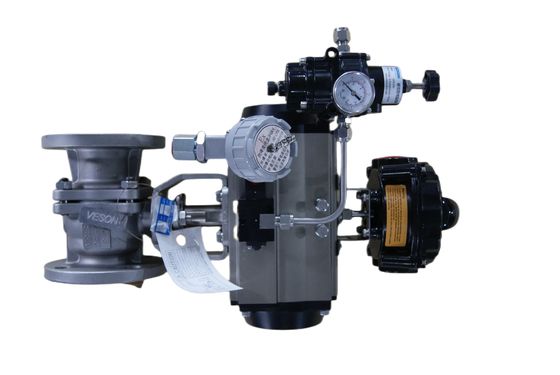

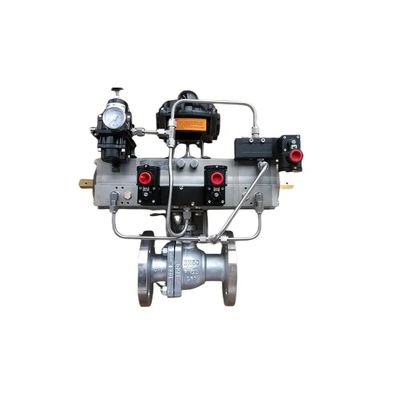

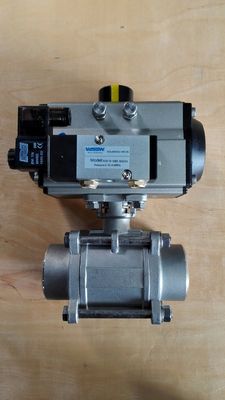

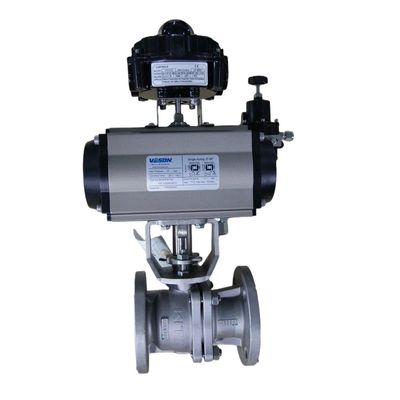

Pneumatic Actuated Flanged Ball Valve
Flanged Air Pressure Control System with Horizontal Pneumatic Actuators
Veson air actuated ANSI 150# stainless steel flanged ball valves are engineered for general chemical and industrial applications. Featuring a full port 2-piece investment cast design, these valves directly mount to actuators with standard ISO5211 mounting pads.
Double acting actuators operate with air pressure signals (80-120 PSI) for valve opening and closing. Available with high temperature valve mounting kits for extended temperature ranges or wall mounting applications. Valves can be mounted in any orientation and are tested per API 598 standards.
Ball Valve Standard Features
- Full port design for unrestricted flow
- 316 stainless steel body, ball and stem
- Blow out proof stem
- RTFE ball seats extend cycle life
- Triple RTFE/Viton stem seal design, live loaded and adjustable
- ISO5211 direct mounting
- Anti-static design
Pneumatic Actuator Standard Features
- Extended cycle life (1 million cycles)
- Quarter turn rack & pinion design
- Highly visible valve position indicator
- Compatible with dry or lubricated pilot air
- Factory lubricated for normal service life
- Anodized aluminum body with epoxy-polyester coated end covers
- Namur & ISO mounting compatibility
