Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications

Dettagli:

Termini di pagamento e spedizione:

Quantità di ordine minimo: 1
Miglior prezzo Contatto

Informazioni dettagliate
Modello n.: VS-063DA Modulo di connessione: Flangia
Struttura: Sigillatura centrale Forma di sigillo: Forza sigillata
Gambo della valvola: Normale Pressione del lavoro: Pressione media (2.5MPa <pn <6.4MPA)
Temperatura di lavoro: Temperatura media (120°C Materiale di tenuta: Morbido sigillato
Corpo valvola: Lamiera Specifica delle dimensioni: 2 pollici-24 pollici
Pressione dell'aria dell'attuatore: 80-120 psi Vita ciclistica dell'attuatore: 1 milione di cicli
Design dell'attuatore: pignone a cremagliera Valutazione resistente alle intemperie: IP66 e IP68
Standard di montaggio: ISO5211
Evidenziare:

Mid-Pressure Air Actuated Butterfly Valve

,

Medium Temperature Butterfly Valve

,

2 inch-24 inch Pneumatic Butterfly Valve

Descrizione di prodotto

Air Actuated Butterfly Valve with Topworks Limit Switch Box Signal Box
Air actuated soft seated butterfly valve designed for on-off control of water and other compatible media. Features spring return actuators that use air pressure (80-120 PSI) to open and springs to close, ensuring fail-closed operation upon loss of air signal.
Butterfly Valve Standard Features
  • Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
  • Extended lifespan with unique wave line seat and special disc shape design
  • Reduced torque from wave seal and disc design allows for smaller, more cost-effective actuators
  • Increased flow capacity through unique profile disc and two-piece shaft design
  • Standard ISO5211 mounting for direct actuator connection
Pneumatic Actuator Standard Features
  • Extended cycle life (1 million cycles)
  • Rack pinion design for reliable operation
  • Highly visible valve position indicator
  • Type IP66 & IP68 weatherproof rating
  • Anodized aluminum body with epoxy-polyester covers
  • Compatible with dry or lubricated pilot air
  • Namur & ISO mounting options
Product Images

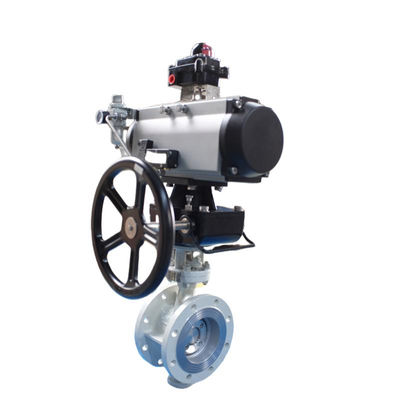

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 0

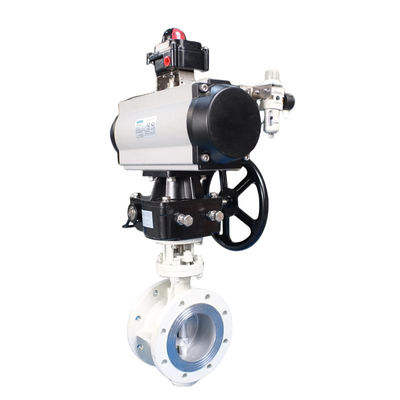

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 1

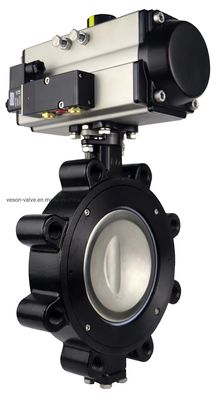

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 2

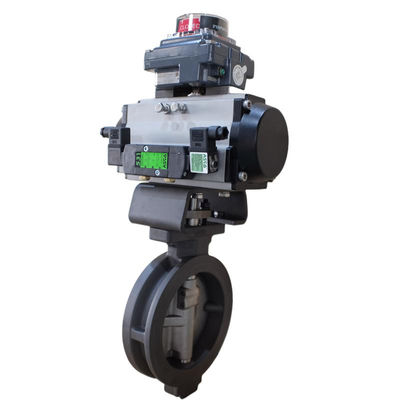

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 3

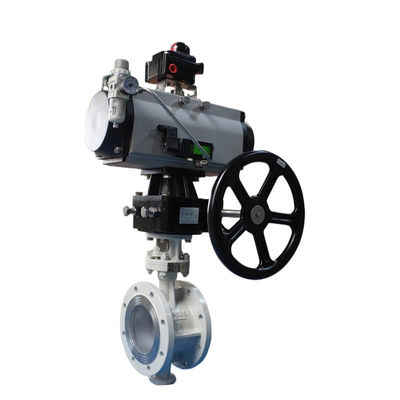

Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 4
Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications 5
