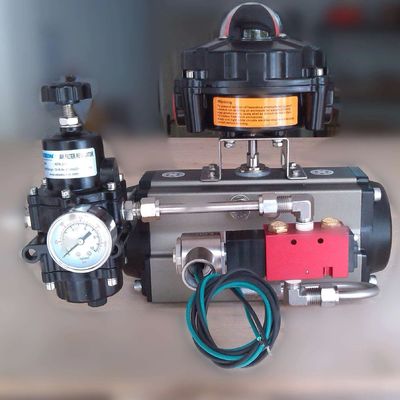

Explosion-Proof Pneumatic Ball Valve with IP66 & IP68 Weatherproof and Clamp Connection
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Modulo di connessione: | MORSETTO | Canale: | Dritto attraverso il tipo |
|---|---|---|---|
| Struttura: | Valvola a sfera mobile | Tipo: | Valvola a sfera mobile |
| Materiale: | Alluminio | Configurazione della porta: | 4 vie, 5 porta |
| Tipo di operazione: | Solenoide, pilota, manuale | Opzioni di montaggio: | Porting laterale, montaggio del rack, collettore montato |
| Tipo di attuatore: | Pneumatico | Vita ciclistica dell'attuatore: | 1 milione di cicli |
| Design dell'attuatore: | pignone a cremagliera | Valutazione resistente alle intemperie: | IP66 e IP68 |
| Materiale dell'attuatore: | Alluminio anodizzato | Aria pilota: | Asciutto o lubrificato |
| Standard di montaggio: | Namur e Iso | ||
| Evidenziare: | IP66 & IP68 Weatherproof Pneumatic Ball Valve,Explosion-Proof Air Operated Ball Valve,Clamp Connection Pneumatic Actuator Ball Valve |
||
Descrizione di prodotto
Explosion-Proof Solenoid Valve with Pneumatic Actuator Veson Brand
Versa's Aluminum valves are multi-purpose 4-way, 5 port 2 position or 5 port 3 position, solenoid, pilot or manually operated pneumatic valves. C Series valves are available for side porting, rack mounting or manifold mounted with a full complement of manifold options.
Air actuated soft seated butterfly valve for on-off control of water and other media compatible with the materials of construction. Spring return actuators use an air pressure signal (80-120 PSI) to open and springs to close the valve. The valve will fail closed upon loss of air signal.
Butterfly Valve Standard Features
- Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
- Extended life span of valve and seals with unique wave line seat and special disc shape
- Reduced torque from wave seal and disc design reduces size of actuator, lowering the cost
- Increased flow capacity with unique profile disc and two piece shaft design
- Valves direct mount to actuator using standard ISO5211 international standards
Pneumatic Actuator Standard Features
- Extended cycle life (1 million cycles)
- Rack pinion design
- Highly visible valve position indicator
- Type IP66 & IP68 weatherproof
- Anodized aluminum body with epoxy-polyester covers
- Dry or lubricated pilot air
- Namur & ISO mounting
Options
(see Accessories tab)
