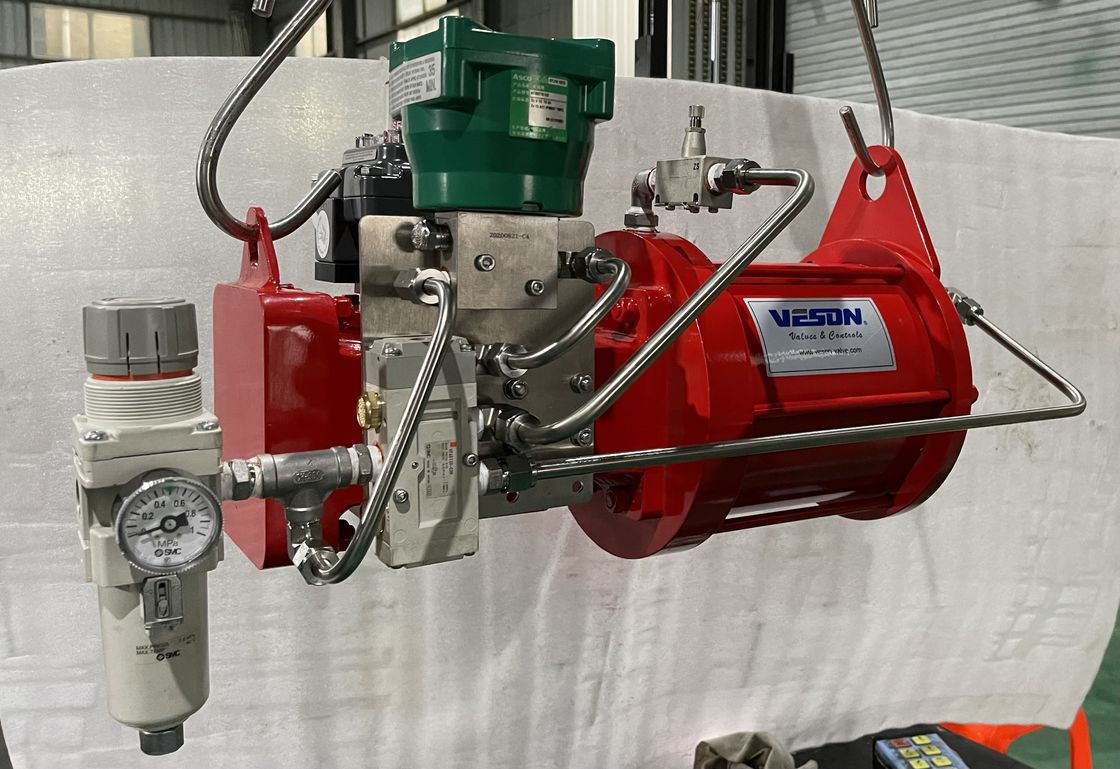

3 Position Pneumatic Actuator Offering Torque Range 10 to 500 Nm Designed for Performance in Industrial Automation Tasks
Dettagli:
Miglior prezzo Contatto|
Informazioni dettagliate |
|||
| Trattamento superficiale: | Anodizzato | Materiale: | Lega di alluminio |
|---|---|---|---|
| Nome prodotto: | Attuatore pneumatico a 3 posizioni | Tempo di risposta: | 0,1-0,5 secondi |
| actuatorType: | Pneumatico | Tipo: | attuatore pneumatico |
| Posizioni: | 3 | Tipo di connessione: | Flangia ISO 5211 |
| Evidenziare: | 3 position pneumatic actuator with torque range,industrial automation pneumatic actuator,high torque pneumatic actuator 500 Nm |
||
Descrizione di prodotto
Product Description:
The 3 Position Pneumatic Actuator is a highly efficient and reliable quarter turn actuator designed to meet the demanding requirements of modern industrial automation systems. Engineered with precision and durability in mind, this pneumatic actuator offers exceptional performance in controlling valves and other rotary devices that require precise positioning within a 180-degree range. Its robust construction and advanced design make it an ideal choice for applications across various industries, including oil and gas, chemical processing, water treatment, and manufacturing.
One of the standout features of the 3 Position Pneumatic Actuator is its ability to operate in three distinct positions, providing enhanced control and flexibility compared to traditional two-position actuators. This capability allows for more accurate modulation and improved process control, resulting in optimized system performance and reduced operational costs. The actuator’s quarter turn function ensures smooth and consistent rotation, which is critical for applications that demand precise valve positioning and reliable operation.
Designed according to the NAMUR standard, the mounting type of this 3 Position Pneumatic Actuator ensures seamless integration with a wide range of valves and accessories. The NAMUR standard is widely recognized and adopted in the industry for its standardized interface, which simplifies installation, maintenance, and replacement. This compatibility enables users to easily retrofit existing systems or incorporate the actuator into new setups without the need for extensive modifications or additional components.
Operating efficiently within a temperature range of -20°C to 80°C, the 3 Position Pneumatic Actuator is suitable for use in diverse environmental conditions. This temperature tolerance ensures reliable performance in both cold and moderately high-temperature settings, making it versatile for indoor and outdoor applications. The actuator’s materials and seals are carefully selected to withstand temperature fluctuations and maintain airtight performance, which is essential for maintaining pneumatic pressure and ensuring consistent actuator response.
As a pneumatic actuator, this product harnesses the power of compressed air to generate torque and drive the quarter turn motion. Pneumatic actuators are known for their simplicity, speed, and safety advantages, especially in hazardous or explosive environments where electrical actuators may pose risks. The 3 Position Pneumatic Actuator combines these benefits with advanced engineering to deliver precise, repeatable movements that enhance process reliability and safety.
In addition to its core functionality, the 3 Position Pneumatic Actuator can be seamlessly integrated with an Electropneumatic Positioner, further enhancing its control capabilities. The Electropneumatic Positioner enables precise feedback and automatic adjustment of the actuator position based on electrical control signals. This integration allows for advanced automation, remote monitoring, and fine-tuned control of valve positions, which is critical for complex process control systems requiring high accuracy and responsiveness.
The 180 Degree Pneumatic Actuator design ensures that the actuator can cover the full quarter turn rotation needed for most valve operations, providing complete and reliable control over valve opening and closing. This wide range of motion is coupled with consistent torque output, ensuring the actuator can handle a variety of valve sizes and types with ease. Whether used in modulating or on/off control applications, the actuator delivers dependable performance that meets stringent industry standards.
Overall, the 3 Position Pneumatic Actuator represents a sophisticated solution for industries seeking a robust, flexible, and easy-to-integrate quarter turn actuator. Its NAMUR standard mounting, wide temperature range, and compatibility with Electropneumatic Positioners make it a versatile choice for enhancing process automation and control. By choosing this 3 Position Pneumatic Actuator, users benefit from improved operational efficiency, reduced downtime, and enhanced safety, making it a valuable addition to any industrial control system.
Features:
- Product Name: 3 Position Pneumatic Actuator
- Material: Durable Aluminum Alloy construction
- Seal Material: High-quality NBR (Nitrile Rubber) for enhanced sealing performance
- Positions: 3 distinct positions for precise control
- Response Time: Fast response time ranging from 0.1 to 0.5 seconds
- Compatible with Electropneumatic Positioner for advanced automation
- Designed for reliable and efficient operation in various industrial applications
Technical Parameters:
| Product Name | 3 Position Pneumatic Actuator |
| Temperature Range | -20°C To 80°C |
| Surface Treatment | Anodized |
| Torque Range | 10-500 Nm |
| Seal Material | NBR (Nitrile Rubber) |
| Mounting Type | NAMUR Standard |
| Connection Type | ISO 5211 Flange |
| Function | Quarter Turn Actuator |
| Application | Valve Automation |
| Control Type | 3 Position Control |
Applications:
The 3 Position Pneumatic Actuator is an advanced device designed for precise control in a variety of industrial applications. With its robust construction and reliable performance, this actuator is ideal for scenarios requiring accurate positioning and repeatability. Featuring an anodized surface treatment, the actuator offers excellent resistance to corrosion and wear, making it suitable for harsh environments. The seal material used is NBR (Nitrile Rubber), which ensures effective sealing and durability even under demanding conditions.
This Double Acting Pneumatic Actuator operates efficiently within a temperature range of -20°C to 80°C, allowing it to perform reliably in both cold and moderately high-temperature settings. Its torque range of 10-500 Nm provides versatility, enabling it to handle a wide spectrum of valve sizes and types. This makes the actuator a perfect choice for controlling valves in chemical processing plants, water treatment facilities, HVAC systems, and other industrial automation applications.
One of the key application occasions for the 3 Position Pneumatic Actuator is in automated valve control systems where precise positioning at three distinct points is necessary. The actuator’s ability to perform 180-degree rotation makes it highly suitable for quarter-turn valves such as ball valves, butterfly valves, and plug valves. This 180 Degree Pneumatic Actuator ensures smooth and accurate valve positioning, which is critical in processes requiring exact flow control and regulation.
In the oil and gas industry, the Double Acting Pneumatic Actuator is commonly employed for controlling pipeline valves, enabling safe and efficient flow management. Its reliable sealing with NBR material and anodized surface treatment ensures longevity even when exposed to hydrocarbons and other aggressive substances. Similarly, in the food and beverage sector, this actuator can be used in automated processing lines where hygiene and precision are paramount.
Furthermore, the 3 Position Pneumatic Actuator is well-suited for use in power generation plants, where it controls steam and water valves under varying temperature conditions. The actuator’s ability to maintain consistent performance within the specified temperature range ensures operational stability, reducing the risk of downtime. Additionally, its double-acting mechanism provides enhanced control by using air pressure for both opening and closing movements, increasing responsiveness and reliability.
Overall, the 3 Position Pneumatic Actuator, with its combination of NBR sealing, anodized surface treatment, wide torque range, and temperature tolerance, is a versatile and dependable solution for numerous industrial control and automation scenarios. Whether in chemical processing, water management, oil and gas, food production, or power generation, this actuator delivers precise, efficient, and durable performance for critical valve control applications.
Customization:
Our 3 Position Pneumatic Actuator offers exceptional customization services tailored to meet your specific needs. This Double Acting Pneumatic Actuator is designed with a robust aluminum alloy body, ensuring durability and reliable performance within a temperature range of -20°C to 80°C. Featuring a NAMUR standard mounting type, it provides easy integration with various valve types.
This 180 Degree Pneumatic Actuator functions as a quarter turn actuator, delivering precise and efficient control for your automation systems. Whether you require adjustments in torque, mounting options, or temperature specifications, our customization services ensure that your 3 Position Pneumatic Actuator perfectly matches your operational requirements.
Choose our product customization services to enhance the performance and compatibility of your Double Acting Pneumatic Actuator, ensuring seamless functionality within your pneumatic control applications.
Support and Services:
Our 3 Position Pneumatic Actuator is designed to provide reliable and precise control in various industrial applications. For technical support, please refer to the product manual included with your actuator, which contains detailed installation, operation, and maintenance instructions.
If you encounter any issues during installation or operation, ensure that the actuator is properly connected to the pneumatic supply and control signals according to the specifications. Verify that all fittings are secure and that there are no leaks in the system.
Regular maintenance is recommended to ensure optimal performance. This includes periodic inspection of seals, lubrication of moving parts as specified in the manual, and checking for any signs of wear or damage.
For troubleshooting, common issues such as failure to move to the desired position may be caused by insufficient air pressure, blockages in the pneumatic lines, or electrical control faults. Refer to the troubleshooting section in the manual for guidance on resolving these problems.
Spare parts and replacement components are available to extend the life of your actuator. Always use genuine parts to maintain product integrity and performance.
Our technical support team is available to assist with product setup, operation guidance, and troubleshooting advice to ensure your 3 Position Pneumatic Actuator operates efficiently and effectively.
FAQ:
Q1: What is a 3 Position Pneumatic Actuator?
A 3 Position Pneumatic Actuator is a device that controls valve positioning with three distinct positions: open, closed, and a mid or intermediate position. It uses compressed air to move the actuator to these precise positions for accurate flow control.
Q2: What applications are suitable for a 3 Position Pneumatic Actuator?
This actuator is ideal for applications requiring precise valve positioning such as in HVAC systems, water treatment plants, chemical processing, and automated manufacturing lines where intermediate valve control is necessary.
Q3: What type of control signals does the 3 Position Pneumatic Actuator support?
The actuator typically supports pneumatic control signals with three distinct pressure inputs to move the actuator to each of the three positions. It can often be integrated with electrical positioners for enhanced control.
Q4: What materials are used in the construction of the 3 Position Pneumatic Actuator?
The actuator is constructed with high-quality aluminum alloy or stainless steel housing for durability and corrosion resistance, along with internal components made of stainless steel and high-performance seals to ensure long service life.
Q5: How is the 3 Position Pneumatic Actuator installed and maintained?
The actuator is mounted directly onto the valve stem using standardized brackets and couplings. Maintenance involves regular inspection of seals, lubrication of moving parts, and checking for air leaks to ensure optimal performance.
