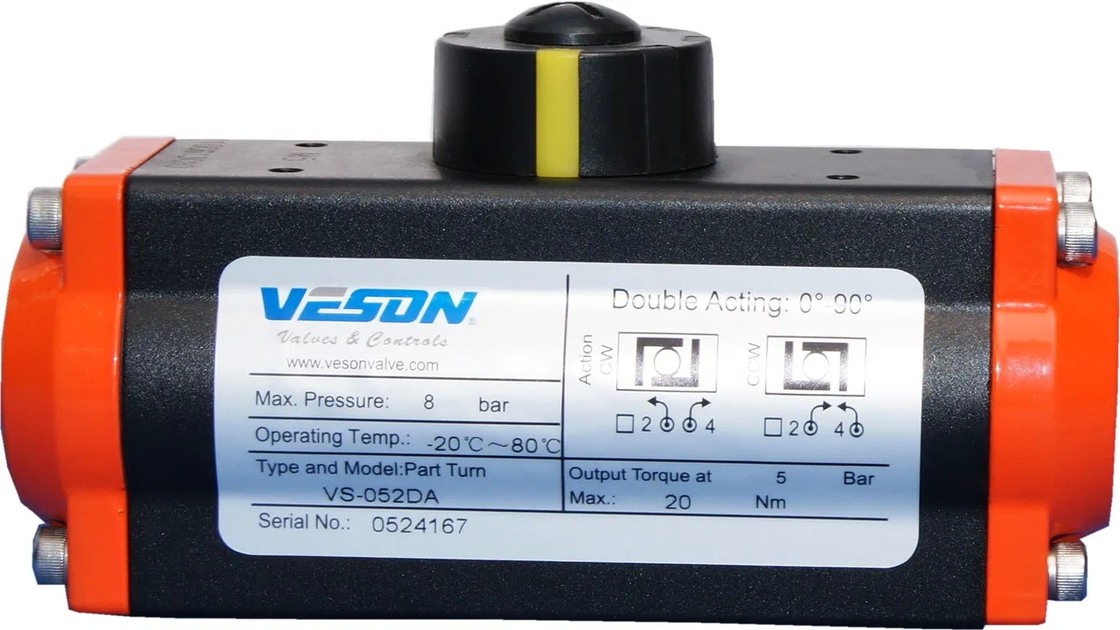

ISO5211 & DIN3337 Standard VS-052~VS-400 Model 50000PC/Y Aluminum Pneumatic Valve Actuator
Dettagli:
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Modello n.: | VS-052 ~ VS-400 | Energia: | Pneumatico |
|---|---|---|---|
| Direzione della pressione: | cilindro a doppia azione | Materiale del pignone: | Acciaio legato indurito |
| Rivestimento del pignone: | Nichelato (oltre 15um) | Materiale del corpo dell'attuatore: | Estrusione in alluminio |
| Rivestimento dell'attuatore: | Anodizzato duro (oltre 30um) | Materiale del cappuccio protettivo: | Die Casting Aluminium |
| Rivestimento del cappuccio terminale: | Rivestimento epossidico (oltre 80um) | Materiale a pistone: | Die Casting Aluminium |
| Rivestimento del pistone: | Anodizzato duro (oltre 30um) | Regolazione del viaggio: | ±5º in entrambe le posizioni |
| Materiale primaverile: | Acciaio ad alta resistenza | Rivestimento primaverile: | Epossidico ricoperto |
| Materiale cuscinetto: | Composto altamente durevole | ||
| Evidenziare: | ISO5211 & DIN3337 Pneumatic Actuator,VS-052~VS-400 Valve Actuator,50000PC/Y Air Actuator |
||
Descrizione di prodotto
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
The hardened alloy steel pinion features precision grinding and Nickel plating (over 15μm) to reduce friction and provide maximum wear resistance. Fully compliant with ISO5211 & DIN3337 standards. Custom dimensions available with optional stainless steel and aluminum alloy materials.
Hard anodized aluminum extrusion (over 30μm) protects against wear and corrosion while minimizing piston friction. Optional Epoxy Coated and PTFE Coated finishes available.
Epoxy coated (over 80μm) die-cast aluminum end caps provide maximum resistance against potentially corrosive elements. PTFE Coated treatment available as an option.
Precisely balanced, hard anodized (over 30μm) die-cast aluminum piston with high-quality guides. The twin rack and pinion design ensures constant torque output across all actuators.
Standard adjustment of ±5° in both open and closed positions via easily accessible external adjustment bolts.
High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs allow for safe and rapid disassembly.
Highly durable compound material provides high thrust stability with minimal friction and long operational life.
